Mitsubishi Outlander: Floor Console Assembly

Mitsubishi Outlander 2007-2013 Service Manual / Body, Exterior, Interior and Supplemental / Interior / Floor Console Assembly

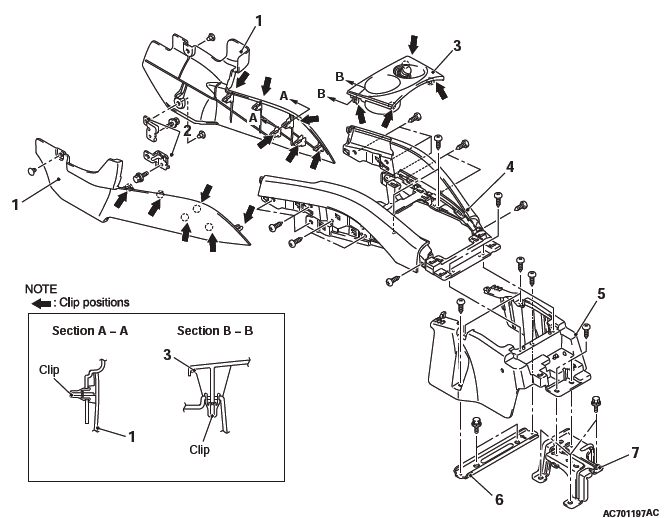

FRONT FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

Mitsubishi Outlander. Interior

Removal steps

  1. Lower side cover
  2. Front floor console bracket
  3. Front floor console panel
  1. Front floor console assembly
  1. Front floor console base
  2. Front floor console base bracket
  3. Front floor console mid bracket

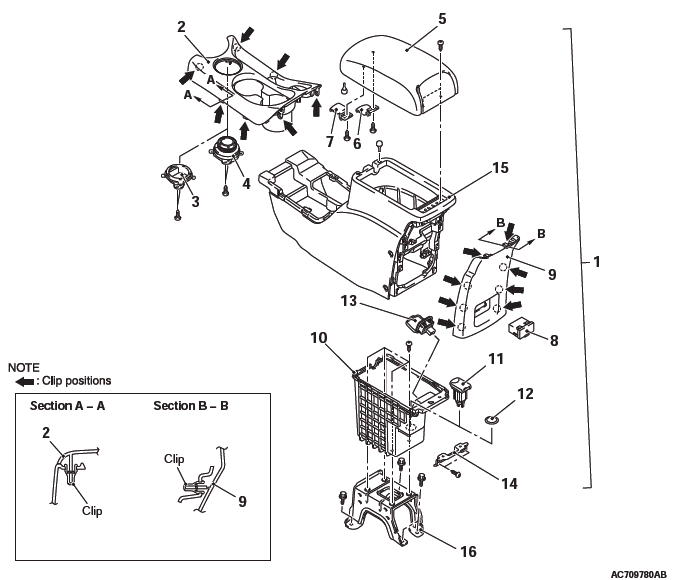

REAR FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

Mitsubishi Outlander. Interior

Removal steps

  1. Rear floor console assembly
  1. Rear floor console front panel assembly
  2. Floor console plug <FWD>
  3. Drive mode selector <AWD>
  4. Armrest assembly
  5. Armrest box lever
  6. Rear floor console box lever
  7. VTR adapter assembly
  8. Rear floor console rear panel
  9. Rear floor console box
  1. Accessory socket
  2. Cigar lighter plug
  3. AC inverter socket
  4. Rear floor console box bracket
  1. Rear floor console
  2. Rear floor console bracket

REMOVAL SERVICE POINT

WIRING HARNESS CONNECTOR DISCONNECTION

Mitsubishi Outlander. Interior

Disconnect the following wiring harness connectors:

Mitsubishi Outlander. Interior
