Mitsubishi Outlander: Engine Mechanical - 2.4L Engine
Mitsubishi Outlander 2007-2013 Service Manual / Engine / Engine Mechanical - 2.4L Engine
General Information
The 4B12 (2.4 L) engine is an in-line four-cylinder engine. The cylinder numbers are assigned as 1-2-3-4 from the front of the engine (timing belt side).
The firing order is 1-3-4-2.

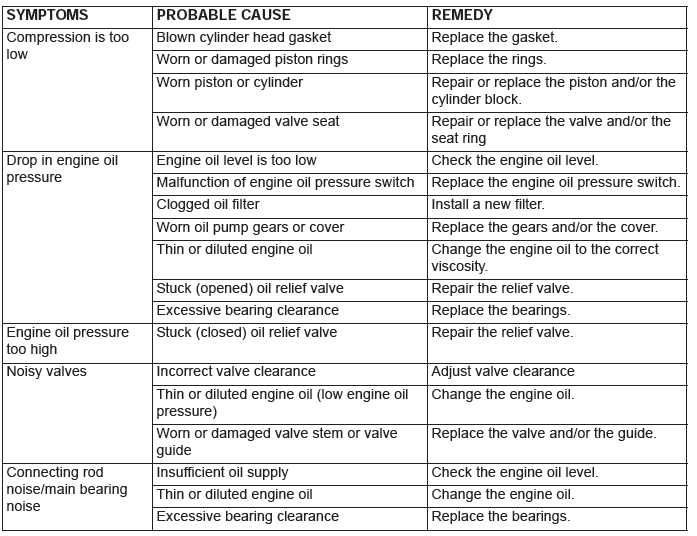

Engine Diagnosis

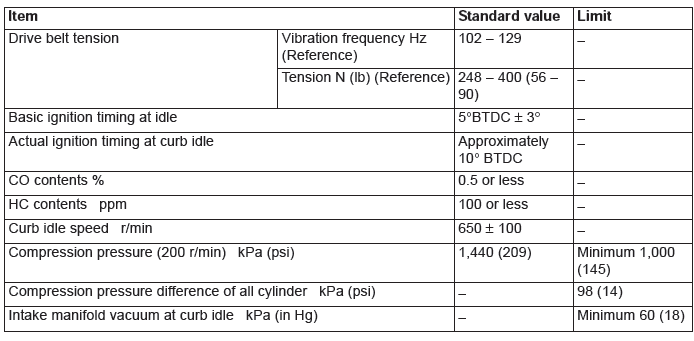

Service Specifications

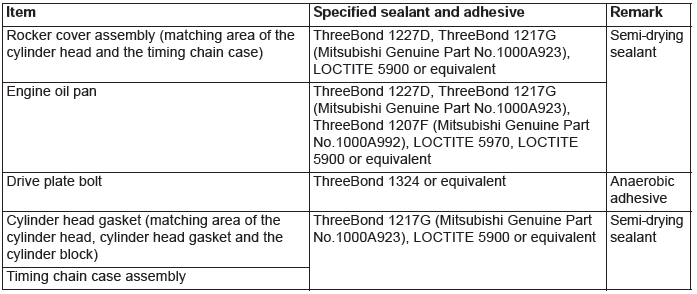

Sealants and Adhesive

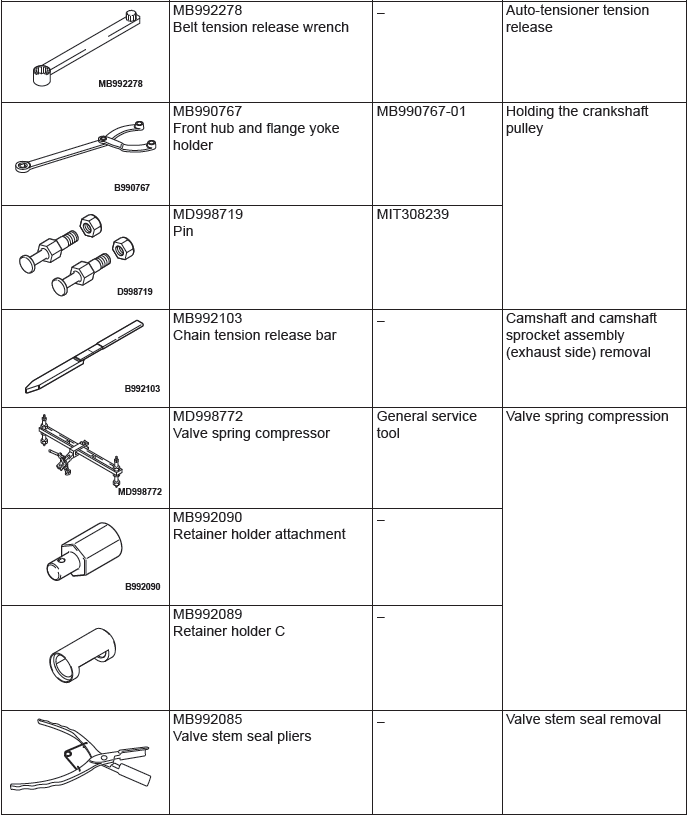

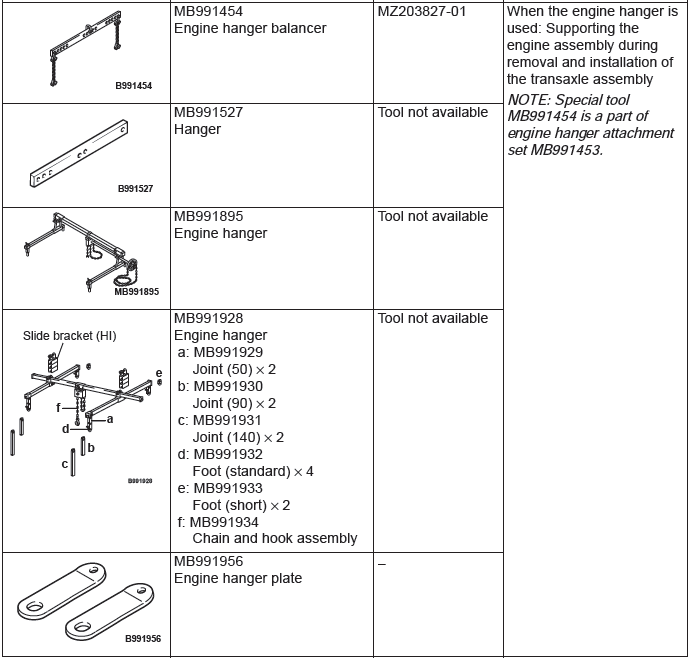

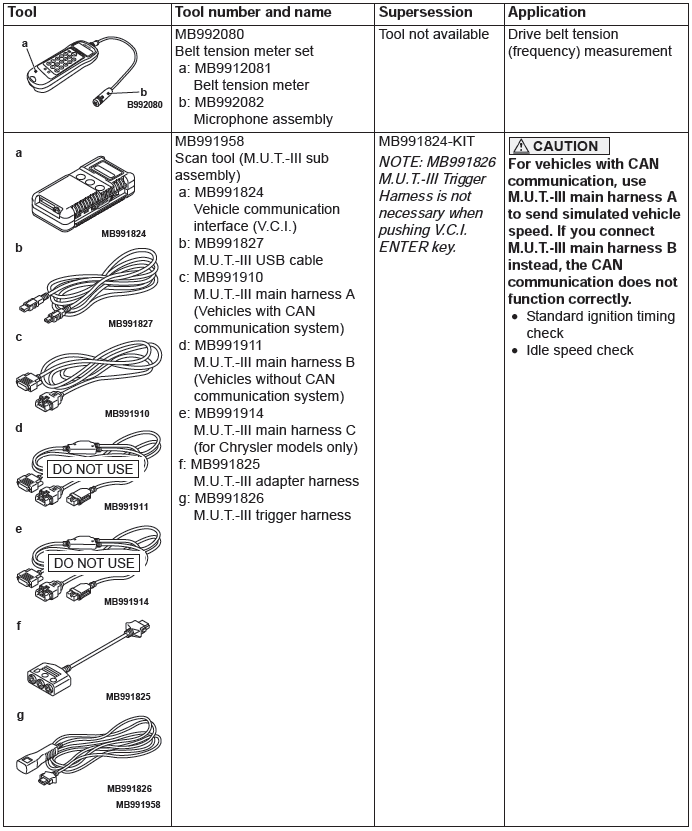

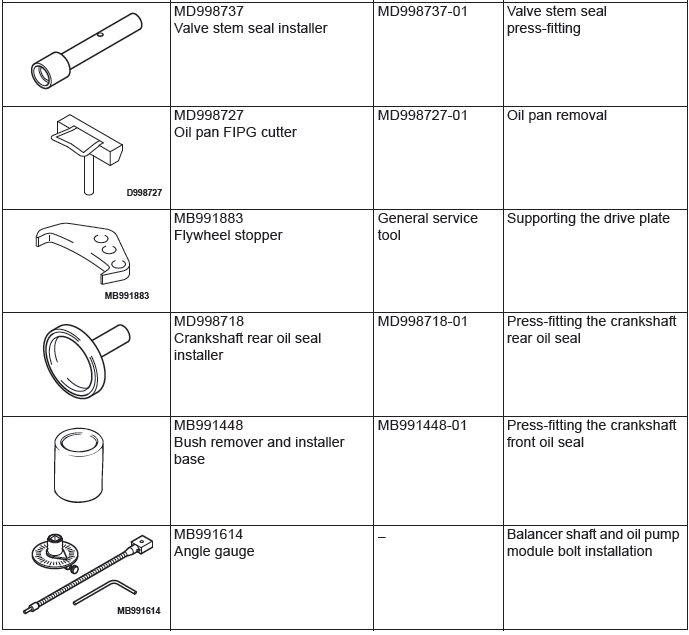

Special Tools
- On-vehicle Service
- Crankshaft Pulley
- Camshaft
- Valve Stem Seal
- Oil Pan
- Crankshaft Oil Seal
- Cylinder Head Gasket
- Timing Chain
- Balancer Timing Chain, Balancer Shaft and Oil Pump Module
- Balancer Shaft and Oil Pump Module
- Engine Assembly
