Mitsubishi Outlander 2007-2013 Service Manual / Brakes and Steering / Power Steering
General Information
- The steering wheel has three spokes and is equipped with SRS (Supplemental Restraint System).
- The steering column has a shock absorbing mechanism and a tilt steering mechanism.
- The steering system uses a vane oil pump with a fluid flow control system, so that steering effort varies with engine speed.

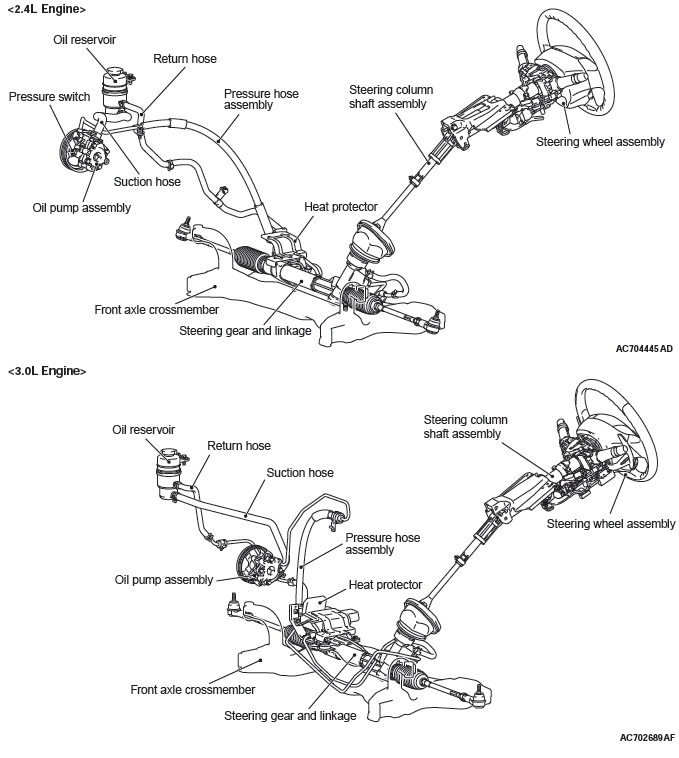

<2.4L Engine>
<3.0L Engine>
Specifications
GENERAL SPECIFICATIONS

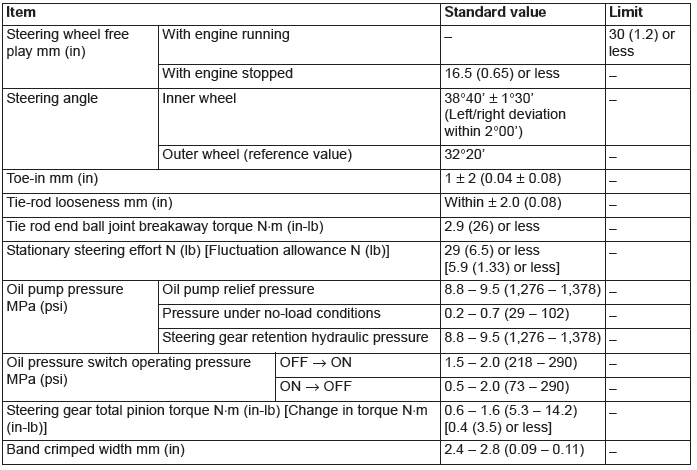

SERVICE SPECIFICATIONS
LUBRICANTS
SEALANT
- Power Steering Diagnosis
- On-vehicle Service
- Steering Wheel
- Steering Column Shaft Assembly
- Power Steering Gear Box and Linkage
- Power Steering Oil Pump Assembly
- Power Steering Hoses
