Mitsubishi Outlander: To use the external audio input function(vehicles with a rear-seat display)

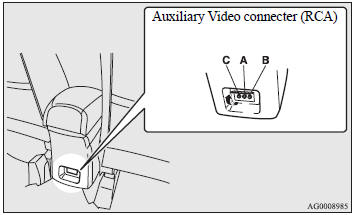

Auxiliary Video connecter (RCA).
A- Left audio input connecter (white).
B- Right audio input connecter (red).
C- Video input connecter (yellow).
You can listen to commercially available audio equipment, such as a portable audio system, from your vehicle’s speakers, by connecting the audio equipment to the audio input connecters (A or B), which are external input connecters (pin jacks).
NOTE:
● For information on using the video input connecter (C), refer to the separate owner’s manual for the rear-seat display.
To activate the external audio input mode
1. Use a commercially available audio cable to connect the audio equipment to the internal audio input connecter (A or B).
2. Press the CD button (D) for more than 2 seconds.
The display (E) will show “AUX REAR” and then the external audio input mode will be activated.
When the power of the rear-seat display is on, press the SOURCE button of the rear-seat display to activate VIDEO mode (for details, refer to the separate rear-seat display owner’s manual).
3. To deactivate the external audio input mode, press the AM/FM button (E) or the CD button (D) to switch to another mode.
CAUTION:
● Do not operate the connected audio equipment while driving.
This could distract you and an accident might occur.
NOTE:
● The connected audio equipment cannot be operated with the vehicle’s audio system.
● For information on how to connect and operate the audio equipment, refer to the owner’s manual for the equipment
