General Information
A trailing arm type multi-link suspension is used. The main features are listed as follows:
- The wheel tread is enlarged to improve cornering ability.
- The roll center height is reviewed with regard to the vehicle specifications to improve the steering ability.
- A double crossmember is utilized and the upper arm, lower arm, toe control arm are jointed to the crossmember to improve the suspension alignment accuracy and maintenance performance.
- Improvement of arms installation accuracy eliminates the camber adjustment to improve maintenance performance.
- The trailing arm bushings are installed in the upper position to improve the movement of the suspension when the vehicle negotiates bumps and increase the riding comfort.
- The control link is installed in the lower position to increase the toe and camber rigidity and improve the steering ability.

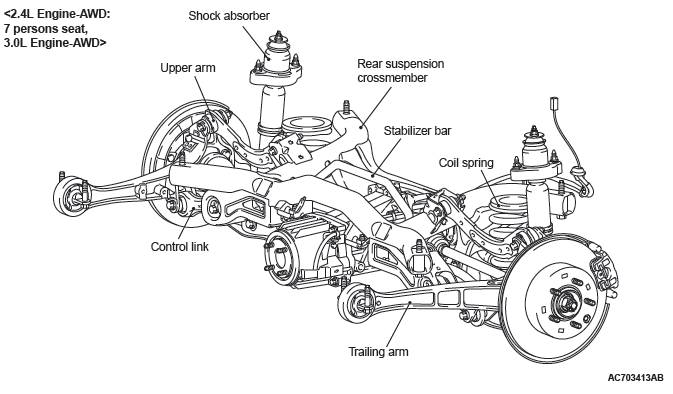

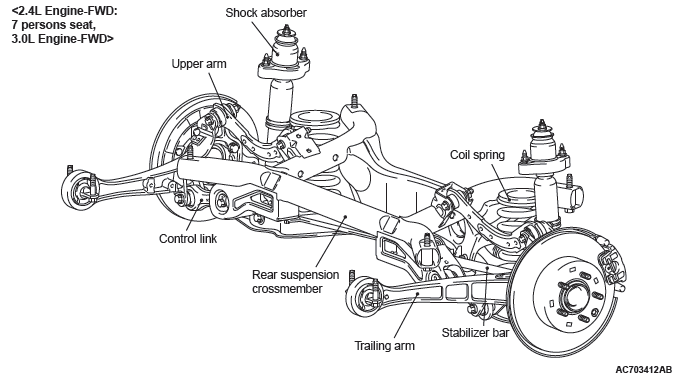

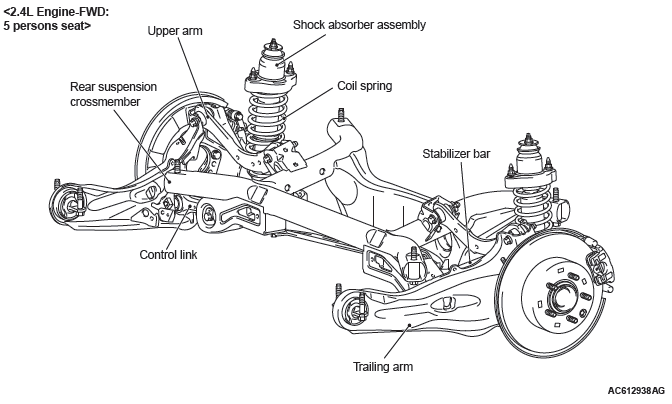

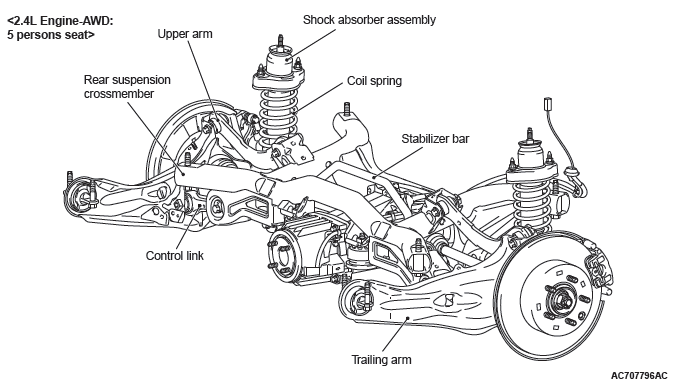

CONSTRUCTION DIAGRAM

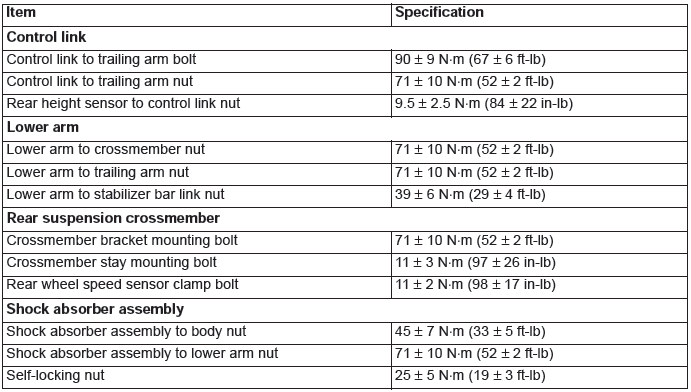

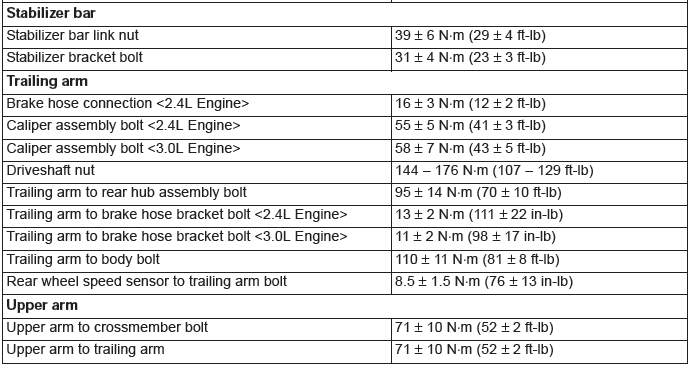

Fastener Tightening Specifications
General Specifications
COIL SPRING <2.4L ENGINE>
COIL SPRING <3.0L ENGINE>
Service Specifications
- Rear Suspension Diagnosis
- Control Link, Upper Arm and Lower Arm
- Trailing Arm Assembly
- Shock Absorber Assembly
- Stabilizer Bar
